Flextron from Dockweiler combines the advantages of flexible corrugated hoses with the purity of electropolished stainless steel tubes – a real innovation for high-purity applications. A special electropolishing process increases particle-free performance, improves passivation and optimizes flow behavior. Manufactured from 316L stainless steel and optionally fitted with a special wire braiding that significantly increases pressure resistance, Flextron offers the highest level of process reliability with minimal risk of contamination compared to similar products. Perfect for process gas supply in the semiconductor and fine chemical industries, as they compensate vibrations and ensure a secure connection even in complex plant structures. With Flextron, you can rely on uncompromising quality – for consistent UHP quality throughout your entire system.
Flextron – The Corrugated Stainless Steel Hose
When uncompromising purity is required, Dockweiler Flextron is the right choice. These electropolished stainless steel corrugated hoses provide the perfect solution for high-purity applications, minimizing the risk of contamination while ensuring maximum flexibility in process gas supply – ideal for the semiconductor and fine chemical industries.

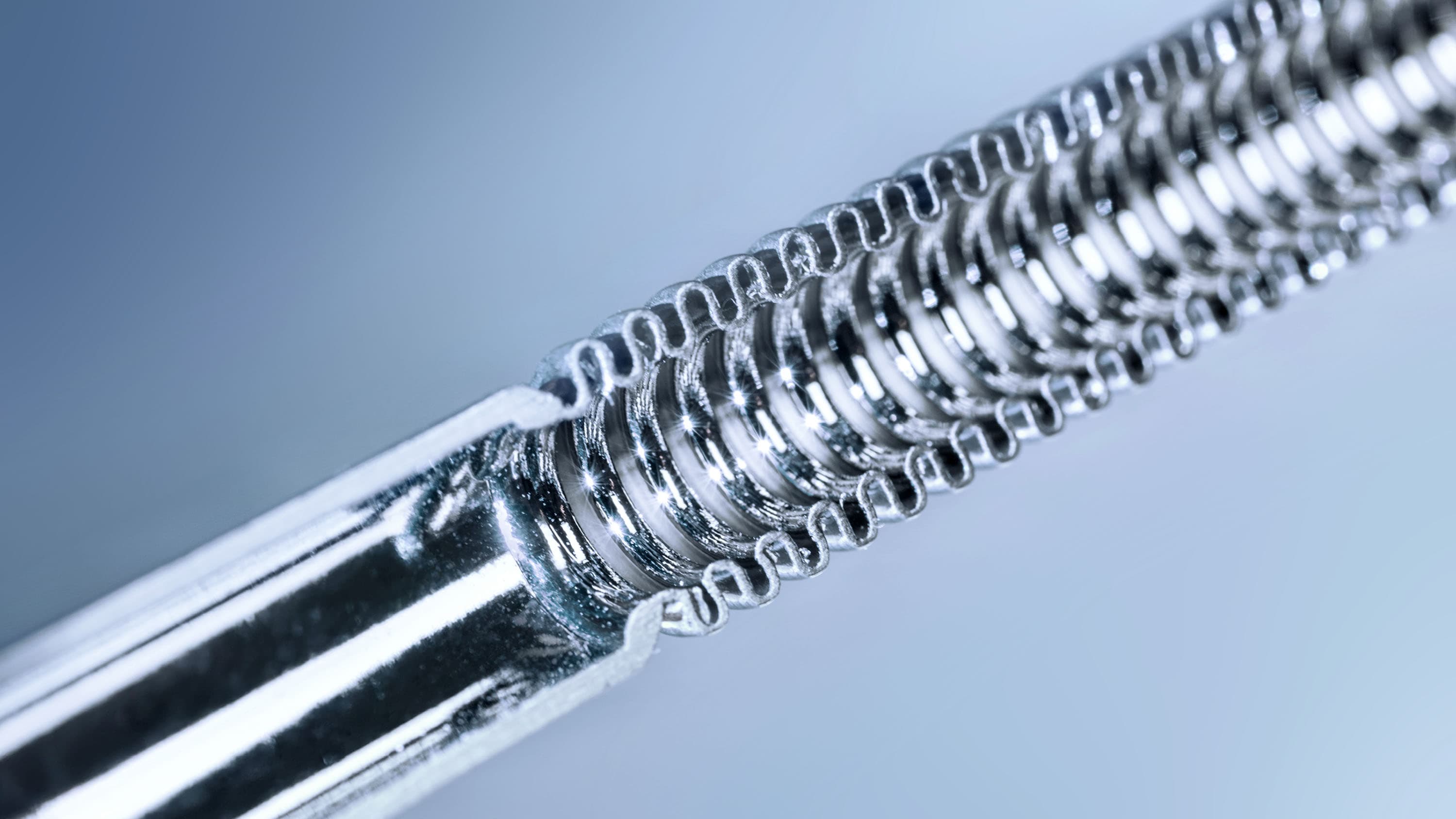

Electropolished corrugated stainless steel hoses

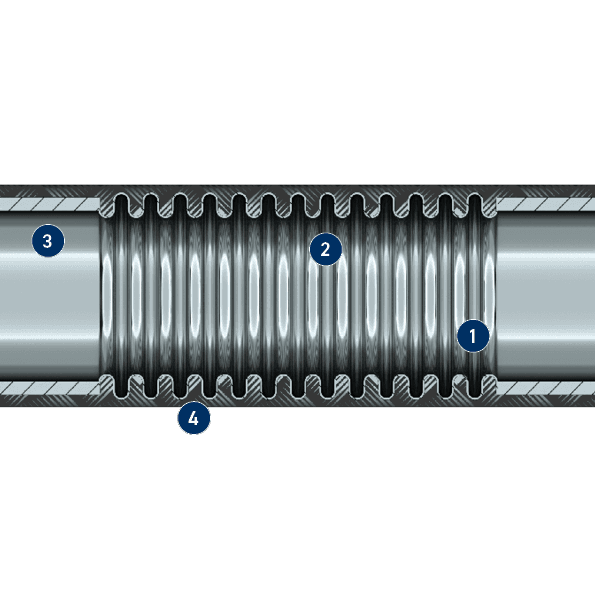

Flextron Design
1 Electropolished corrugated hose
Guaranteed surface roughness of Raavg. ≤ 0.4 µm to 0.6 µm meets the highest UHP requirements
2 Maximum corrosion resistance
Homogeneous passive layer for excellent corrosion protection through electropolishing
3 Connection Options
A wide range of connection options enables easy installation in the entire system.
4 Wire braiding
The wire braiding increases the pressure resistance of the corrugated hose up to 15 times.
Overview
Materials
Flextron is available in the following standard materials:
- Corrugated hose: 1.4404
- Wire braiding: 1.4301
Dimensions
Flextron is available in the following hose diameters, connections and system lengths:
- Hose diameter: DN6, DN10 and DN20
- Hose connectors: ¼“, 3/8”, ½“, 3/4” and 1”
- System lengths (incl. welding end): 6“, 12”, 24“ and 36”, on request up to 60”

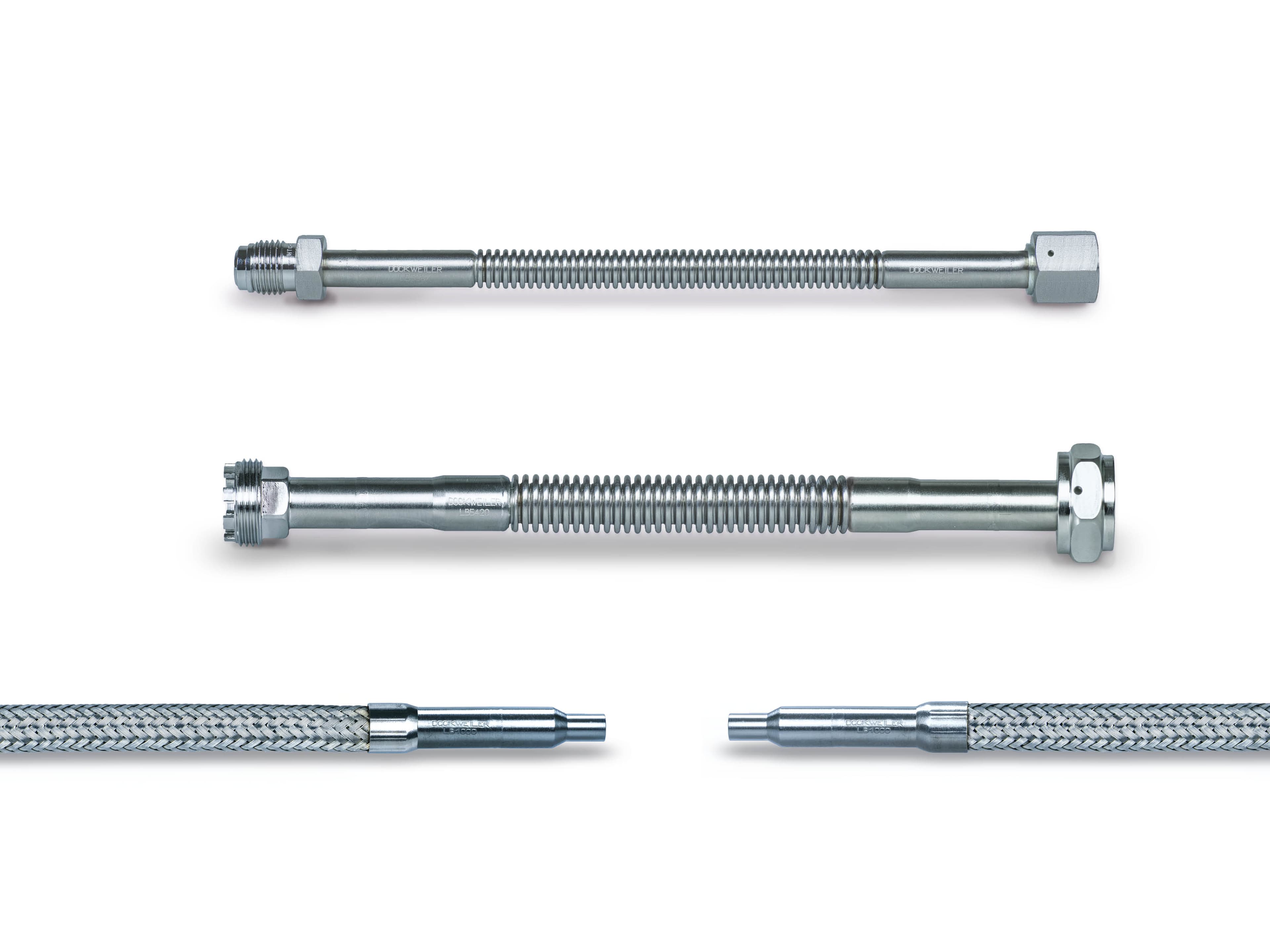

Connections
- VCR
- ZeroCon
- Welding ends
- More on request
Maximum process reliability with Flextron - Download the brochure now!
Find out how Flextron combines the advantages of flexible corrugated hoses with the purity of electropolished stainless steel tubing. Download the product brochure now and discover all the technical details!
The benefit of the electropolished surface
UHP gas supply without compromise
Experience consistent UHP quality with electropolished corrugated stainless steel hoses.
Contact us today and find out how Flextron can take your high-purity gas supply to the next level!
Your Flextron Benefits
Ultra High Purity
The only way to fulfill the highest purity requirements for a UHP gas system – from the gas tank to the production equipment – is with Flextron.
Resistant to corrosion
The electropolished corrugated hose made of stainless steel guarantees a homogeneous passive layer for optimal corrosion protection.
Everything from a single source
Dockweiler offers the complete UHP stainless steel system from one source
FAQs
Flextron's flexible design enables mechanical decoupling of system components, which reduces oscillations and vibrations.
Flextron's flexible design offers easier installation and maintenance, especially in complex or difficult to access systems.
Thanks to the electropolished surface and the reduced number of weld seams, Flextron helps to minimize particle generation.
