From UHP, CFOS and PCW solutions for the semiconductor industry to manifold systems for the pharmaceutical and food industry and cooling systems for data centers – our manifolds are essential for the efficiency and reliability of your processes. Manufactured with the highest precision, they enable uniform distribution of media and easy integration into existing systems.
Manifolds
Our manifold production combines innovation and precision to create optimal solutions for demanding processes. Perfectly customized to your individual needs.
Customized solutions and proven quality guarantee optimal results – from planning to implementation.
UHP Manifolds for the Highest Purity Requirements
Dockweiler UHP (Ultra High Purity) manifolds were specifically developed to meet the semiconductor industry’s most stringent purity requirements. They enable the safe and reliable distribution of ultra-high-purity gases in sensitive production environments where even the smallest impurities can compromise process stability. Through their consistent focus on purity, quality, and process reliability, Dockweiler UHP manifolds make a decisive contribution to the availability of modern manufacturing facilities.

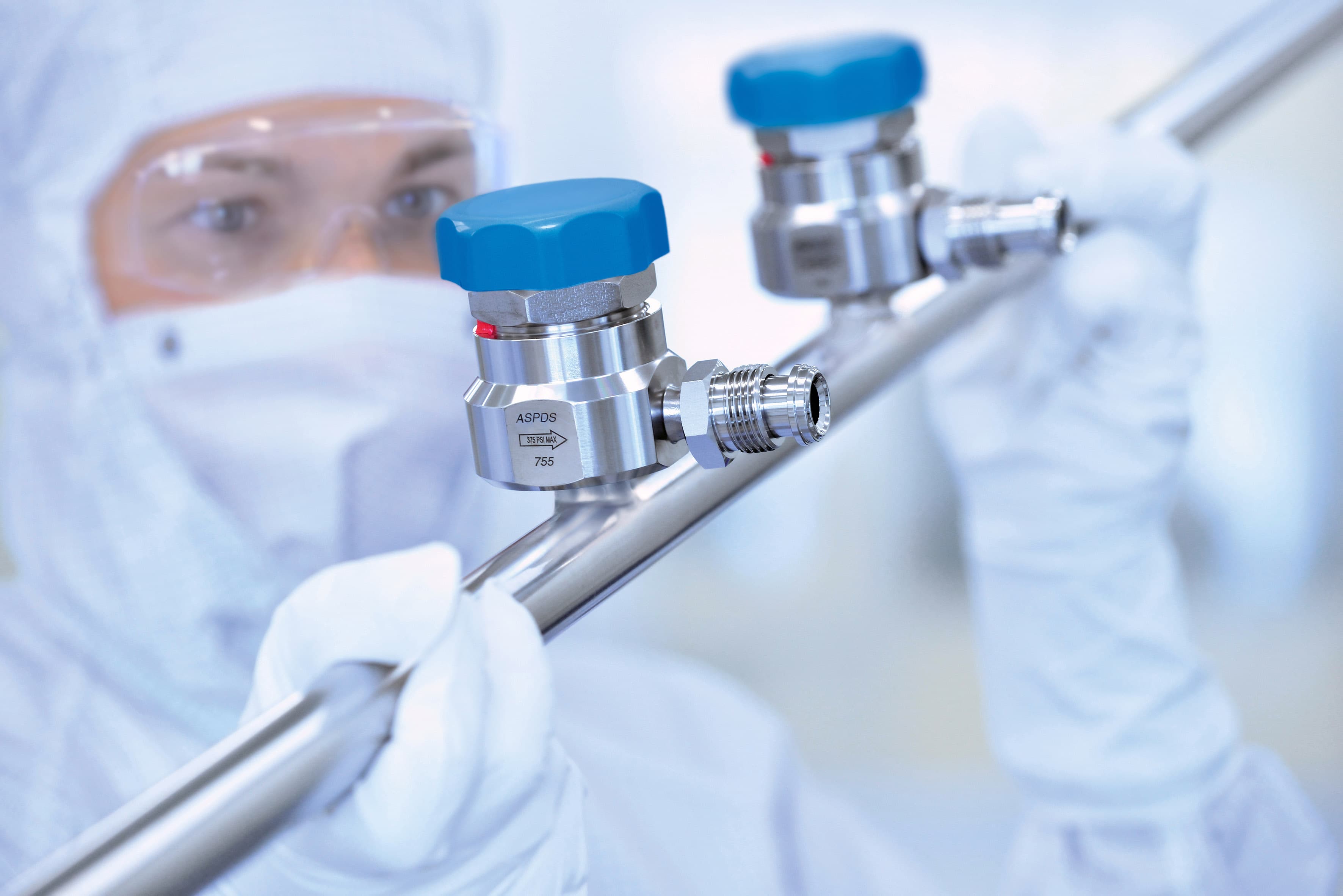

The systems are manufactured from high-quality stainless steel materials and can be finished with Dockweiler’s proven surface finishes, including electropolished ultron® surfaces. Manufacturing, cleaning, and packaging take place under controlled cleanroom conditions up to ISO Class 4 / US FED STD 209E Class 10. State-of-the-art orbital welding technology, continuous cleanroom monitoring, and extensive quality inspections ensure the highest product quality.
Prefabricated UHP manifolds are delivered fully assembled, cleaned, tested, and ready for installation. The high degree of prefabrication significantly reduces the number of welds required on-site, thereby minimizing particle sources and shortening commissioning times. All systems undergo a 100-percent helium leak test down to 1 ×10⁻⁹mbar l/s and are delivered with complete documentation and full traceability. This ensures maximum safety for the most demanding UHP applications worldwide.
CFOS Manifolds for Bulk and Specialty Gases
Dockweiler CFOS manifolds (Cleaned for Oxygen Service) were specifically developed for the safe and reliable distribution of bulk and specialty gases in demanding semiconductor applications. The systems are manufactured from high-quality materials such as 316L or 304L and designed to meet customer-specific requirements. Depending on the specification, defined surface finishes such as finetron, TCC, TCC.1, or ultron are used, all of which have proven themselves in the semiconductor industry for many years.
Prefabrication in a controlled production environment and assembly in qualified cleanrooms up to ISO Class 6 ensure the highest standards of quality and cleanliness. All manifolds are fully assembled, cleaned, packaged, and subjected to extensive quality inspections prior to shipment. These include, among other things, dimensional inspections, documented welding records, and a 100-percent helium leak test down to 1 ×10⁻⁷mbar l/s. Seamless traceability and project-specific documentation ensure maximum process reliability.
Thanks to Dockweiler’s off-site manufacturing approach, a large portion of the welding work on-site can be eliminated. This reduces installation times, minimizes potential sources of error, and ensures faster and more efficient system assembly while maintaining the highest manufacturing quality.
PCW Manifolds for High-Performance Cooling Water Systems

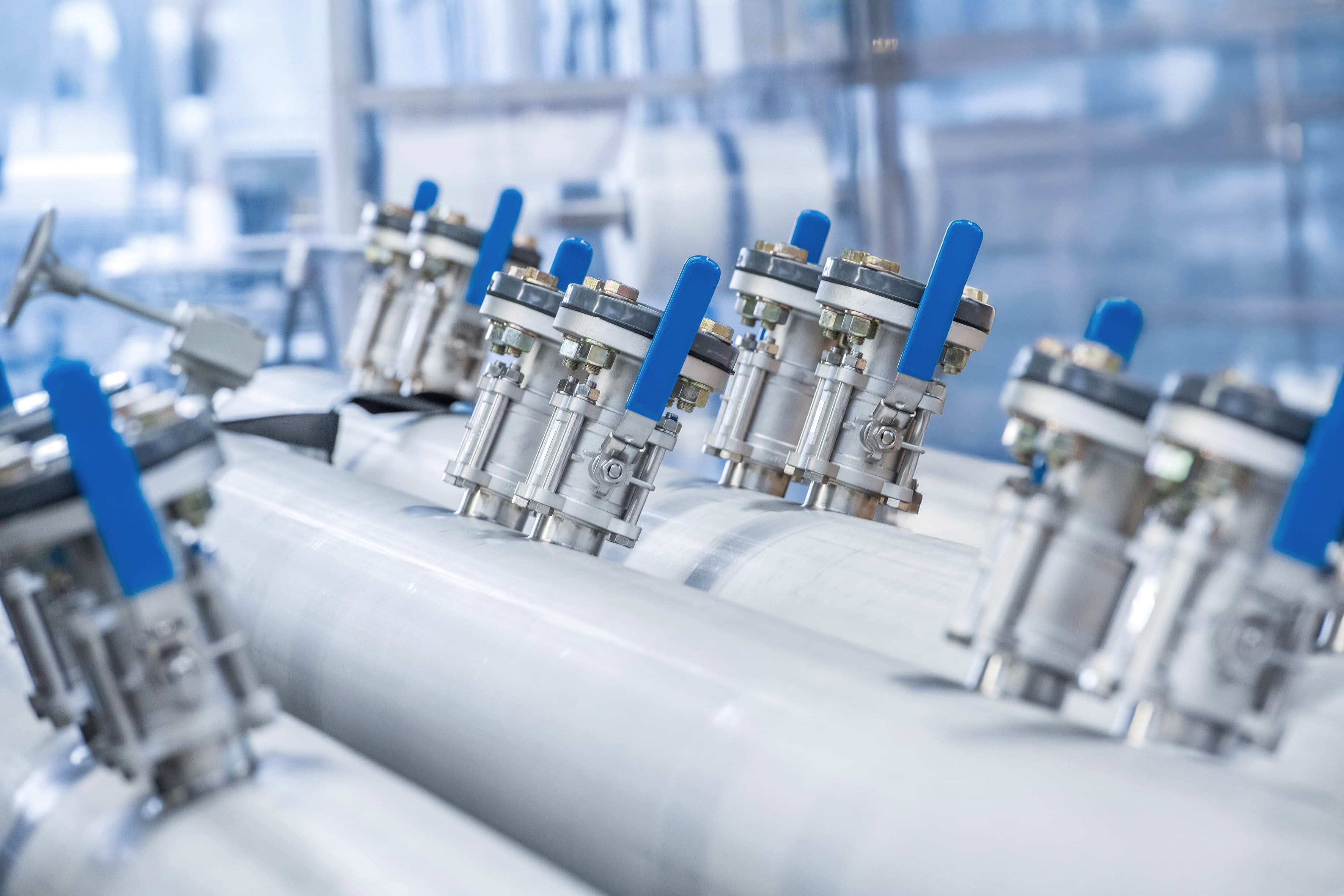

Dockweiler PCW (Process Cooling Water) manifolds offer a reliable solution for distributing process cooling water in semiconductor factories, high-tech production facilities, and modern data centers. The pre-assembled distribution systems are custom-designed and delivered as fully tested, ready-to-install units. This significantly reduces installation effort and construction time on-site.
The systems are manufactured from 304L or 316L stainless steel and can be equipped with customer-specific valve configurations as well as various connection and coupling solutions. Prior to delivery, all distribution systems are fully assembled, cleaned, packaged, and subjected to extensive quality inspections. These include dimensional checks, documented weld inspections, and a 100-percent helium leak test down to 1 x10⁻⁷mbar l/s.
Operators benefit from Dockweiler’s off-site manufacturing strategy, particularly in large-volume cooling water systems. Prefabricated assemblies significantly reduce the amount of on-site welding required, simplify installation, and increase schedule and planning reliability. Comprehensive technical documentation and complete traceability of all components ensure a consistently reliable and cost-effective solution for demanding cooling water applications.
Overview
- 1.4404
- 1.4435
- UNS S31603 (316L)
- Other special materials on request
- Tube diameters from ¼“ to 6”, other dimensions on request
- Wall thicknesses according to customer specification
- Individual lengths and geometries depending on application
- Clean room production under ISO class 4 (US FED STD 209E 10)
- High-purity orbital weld seams with documented test history
- From bright metal to electropolished
- Optional Residual gas analysis (RGA) for checking the highest purity requirements
- Helium leak test or pressure test according to customer requirements
The highest surface quality for reliable processes
Dockweiler offers a wide range of customized surface finishes for manifolds to meet a variety of requirements – from bright finished to electropolished. Ultra-pure applications, such as in the field of UHP (Ultra High Purity), benefit from our production in our own clean rooms, which ensure the highest quality and cleanliness.
With decades of experience in mechanical and electrochemical surface treatment, we are setting new standards.
Our expertise therefore enables not only the surface finishing of standard fittings and tubes, but also of complex special components such as manifolds, CIP lances and containers. We guarantee optimum quality for your individual applications.
loaderstate.init
Dockweiler manifolds
Discover our customized manifold solutions!
Contact us today to discuss your individual requirements – we will realize your vision with precision and technical expertise.
Benefits of prefabricated manifolds
Increase efficiency
Prefabricated manifolds significantly reduce installation work, minimize on-site welding work and shorten commissioning times.
Purity guaranteed
Manufactured in a clean room in accordance with ISO 14644-1 and with optional residual gas analysis - ideal for ultra-high-purity applications.
Compact solutions
Tailor-made manifolds enable space-saving integration into existing systems - ideal where installation space is limited.
Complete traceability
Seamless documentation from the starting material to the end product ensures full traceability and quality assurance.
Downloads
More information
Stainless steel solutions for the highest demands
High-purity stainless steel tubes and fittings - certified, precise and reliable. Ideal for demanding applications in the semiconductor, pharmaceutical and energy industries. Click here to find out more about our standard range.
Perfect cleaning
Our CIP and SIP systems offer you tailor-made solutions for efficient and safe cleaning. Thanks to precise manufacturing and optimized surfaces, we offer you everything you need to meet the highest hygiene requirements.
Advice that goes further
From material selection to specific applications - our team supports you with precise, application-oriented advice. Find out how we can improve your processes. Find out more!
